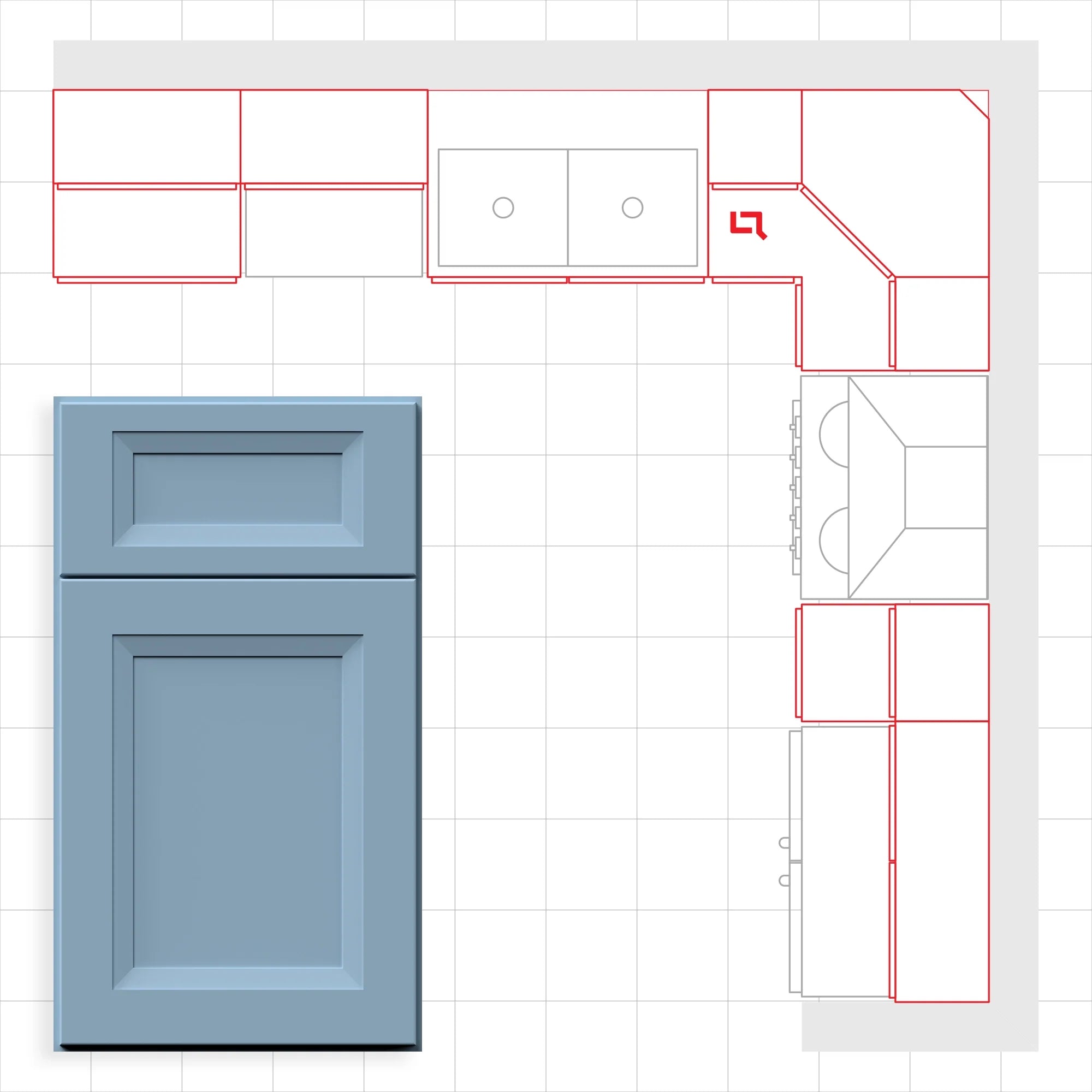

Fabuwood Allure Onyx Ocean Blue 10x10 Kitchen Design Set

Refined craftsmanship meets practicality with our Allure Onyx Ocean Blue Shaker cabinets, featuring solid wood frames, Blum Compact Clip Concealed Hinges, and designer Onyx Ocean Blue color.

Enhance your kitchen with our adaptable Onyx line. These clean-cut, shaker-style cabinets can complete both modern and traditional kitchens.

Refined craftsmanship meets practicality with our Allure Onyx Ocean Blue Shaker cabinets, featuring solid wood frames, Blum Compact Clip Concealed Hinges, and designer Onyx Ocean Blue color.

Allure Onyx Ocean Blue Door Specifications

• Full overlay door with mortise and tenon construction
• Solid wood door frames with 3/8 inch MDF center panel
• All Allure door styles come standard with Blum Compact Clip Concealed Hinges and feature Quick-Release Technology with Blumotion Soft-close
• Hinges are six-way adjustable and open at 110 degrees
• Please note: Lazy Susan, Easy Reach, and Pie Cut cabinets do not feature the soft-close mechanism

Allure Onyx Ocean Blue Drawer Specifications

• 5-piece recessed panel drawer fronts
• 5/8 inch solid wood drawer box with dovetail construction
• Tandem plus Blumotion full extension concealed drawer runners

Allure Onyx Ocean Blue Box Specifications

• Dovetail construction
• 1/2 inch select solid wood construction
• 3/4 inch adjustable shelves edge-banded in wood veneer natural finish
• Base cabinet has 18 inch deep shelves

Allure Onyx Ocean Blue Finish Specifications

• Available in eight designer collection painted finishes: Sage Green, Cloud White, Denim Blue, Ocean Blue, Hunter Green, Pitch Black, Graphite Black, Pistachio Green
• Natural wood veneer finished interior

Fabuwood Allure Onyx Ocean Blue 10x10 Kitchen Design Set Parts:

W2430 Wall Cabinet

• Part & Quantity: OOB W2430 (2)
• Cabinet Doors: 2
• Dimensions: 24 in. width 30 in. height/length
• Cabinet Width: 24 in.
• Wall Cabinet Height: 30 in.

W1230 Wall Cabinet

• Part & Quantity: OOB W1230 (2)
• Cabinet Doors: 1
• Dimensions: 12 in. width 30 in. height/length
• Cabinet Width: 12 in.
• Wall Cabinet Height: 30 in.

WDC2430 Wall Diagonal Cabinet

• Part & Quantity: OOB WDC2430 (1)
• Cabinet Doors: 1
• Dimensions: 24 in. width 30 in. height/length
• Cabinet Width: 24 in.
• Wall Cabinet Height: 30 in.
• For Lazy Susan see accessories info or contact us

W1530 Wall Cabinet

• Part & Quantity: OOB W1530 (1)
• Cabinet Doors: 1
• Dimensions: 15 in. width 30 in. height/length
• Cabinet Width: 15 in.
• Wall Cabinet Height: 30 in.

W3612 Wall Cabinet

• Part & Quantity: OOB W3612 (1)
• Cabinet Doors: 2
• Dimensions: 36 in. width 12 in. height/length
• Cabinet Width: 36 in.
• Wall Cabinet Height: 12 in.

B24 Base Cabinet

• Part & Quantity: OOB B24 (2)
• Cabinet Doors: 2
• Cabinet Drawers: 1
• Dimensions: 24 in. width 34 1/2 in. height/length
• Cabinet Width: 24 in.
• Cutlery Divider available
• Peninsula modification available
• Roll Out available

SB36 Sink Base

• Part & Quantity: OOB SB36 (1)
• Cabinet Doors: 2
• Dimensions: 36 in. width 34 1/2 in. height/length
• Cabinet Width: 36 in.
• Has 3" center stile
• Tilt Out available
• Has two drawer fronts

LSB36 Lazy Susan Base

• Part & Quantity: OOB LSB36 (1)
• Cabinet Doors: 1
• Dimensions: 36 in. width 34 1/2 in. height/length
• Cabinet Width: 36 in.
• Both wooden Lazy Susan trays rotate independently
• Center tray is mounted on 18mm ( 3/4") adjustable shelf
• LSB36: New Larger Trays - includes two 32" Pie-Cut Lazy Susan Trays
• Soft close hinge not available

TK8 Toe Kick

• Part & Quantity: OOB TK8 (2)
• Dimensions: 96 in. height/length
• Exterior finish matches that of door style ordered
• Moisture Resistant MDF will have visable green core
